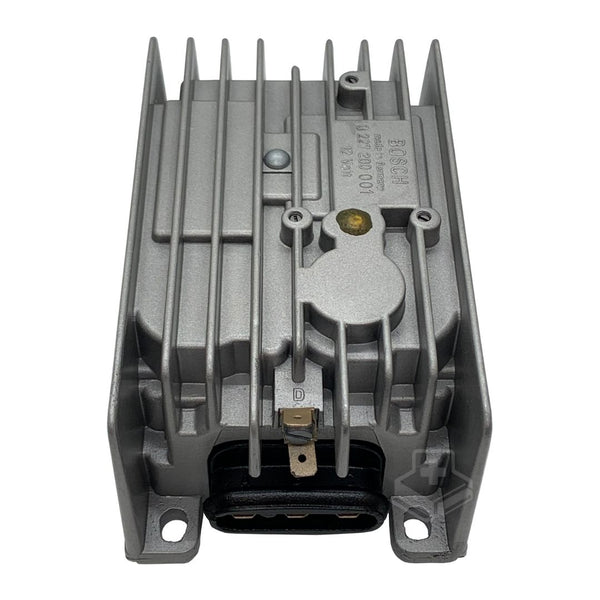

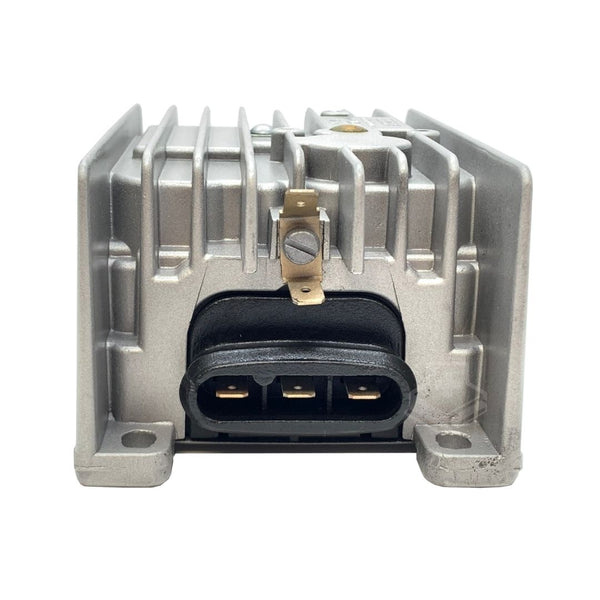

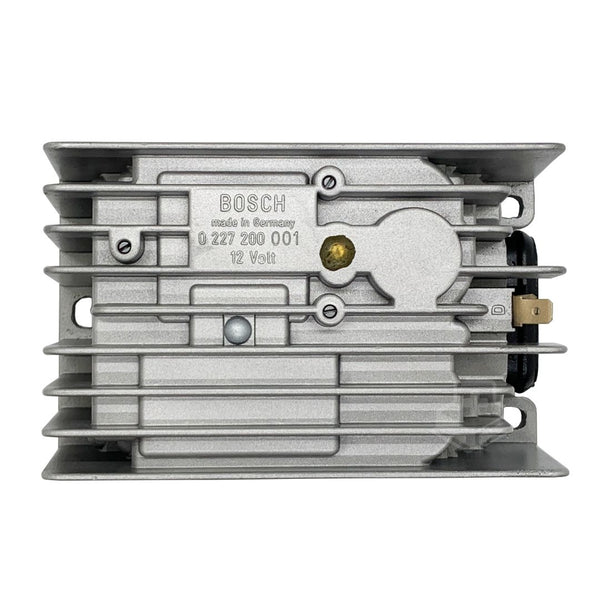

Porsche 911 CDI Box 3 Pin HKZ Bosch 0227200001 Repair

SERVICES

REPAIR SERVICE:

CDI Box 3 Pin Bosch 0 227 200 001, 0 227 200 008 only fits the Porsche 911 from years 1969 - 1977.

For this service send us your defective CDI with our Repair Form filled out.

(Note: Pack your CDI properly to avoid damage during shipping)

Once we receive your CDI Box, we will:

• Visually Inspect
• Bench test
• After the initial testing is done we will contact you to inform the results and ask you for approval to complete the Job.

Average Job turn around: 5 days

Warranty: 5 Years and guaranteed to be Plug and Play once received.

Note: Repair Form must be filled out BEFORE you ship the CDI Box.

INSTRUCTIONS

CDI LOCATION

The Porsche Capacitor Discharge Ignition system or "CDI box" uses the 12 Volts from the cars battery and converts it into 450 volts, this voltage is then transferred to the ignition coil. This versatile unit was developed by Bosch for high performance engines.

We cover all details to give you back a product that is better than new, cleaning the outside aluminum casing and installing reproduction labels.

COMMON SYMPTOMS OF A PORSCHE 911 CDI BOX:

• Car will not start.
• No Power to Ignition Coil.
• Stalls out in High Temperture.
• Fluctuating Tachometer.

TECHNICAL DATA

How to install the ECU

Porsche 911 early 3 Pin CDI Box Coil Resistance Check

Porsche 911 Early/ Porsche CDI Box 3 PIN Diagram
